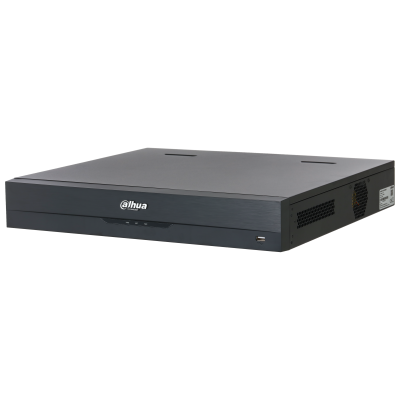

Dahua 32CH 16PoE WizSense NVR | NVR5432-16HP-AI/ANZ-S2

The Dahua NVR5432-16HP-AI/ANZ-S2 is a thirty-two-channel WizSense recorder for demanding commercial and multi-building CCTV systems. It combines sixteen integrated PoE ports with four HDD bays, allowing a large camera system to begin with direct-connected cameras and expand through the network as requirements grow.

Key features

• 32 IP camera channels with 16 built-in PoE ports
• Four internal SATA HDD bays
• Supports compatible IP cameras up to 32MP
• Up to 448 Mbps incoming, recording and outgoing bandwidth
• 8K HDMI output and Smart H.265+ compression
• Recorder-side AcuPick, perimeter protection, video metadata, face functions and SMD Plus
• Supports iSCSI storage expansion and compatible camera analytics

Compatibility and storage

This NVR is designed around the Dahua IP ecosystem. Compatible ONVIF cameras may record successfully, but AI functions, audio, smart search and remote settings vary by camera. Sixteen additional channels require network-connected cameras through suitable PoE switches. No hard drives are included unless expressly stated.

What you will need

Add surveillance-rated HDDs, compatible cameras, Cat5e or Cat6 cabling, any required PoE switches and a monitor or computer for setup. Storage should be calculated from camera count, resolution, frame rate and retention requirements.

Shipping and support

Australia-wide delivery and Perth pickup are available. Contact our CCTV team with the proposed camera list for compatibility, PoE capacity and storage guidance.
