Dahua KTP01L 7" Touch Screen IP Video Intercom Kit Surface Mount Kit

Dahua KTP01L Video Intercom KIT

IP Villa Door Station

• Anodised aluminum front panel.
• CMOS low illumination 2MP HD colorful 168.6°camera.
• Video intercom function.
• Provides 12 VDC, 600 mA power.
• Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
• IK07 and IP65 rated (silicone sealant is required for the shell, see the quick start guide).
• Support H.265 and H.264.
• Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).

IP Indoor Monitor

• 7" TFT Capacitive touchscreen, 1024 × 600.
• IPC surveillance.
• Alarm integration.
• High performance and cost-effective.
• Supports 8 GB SD card.
• Supports standard PoE.

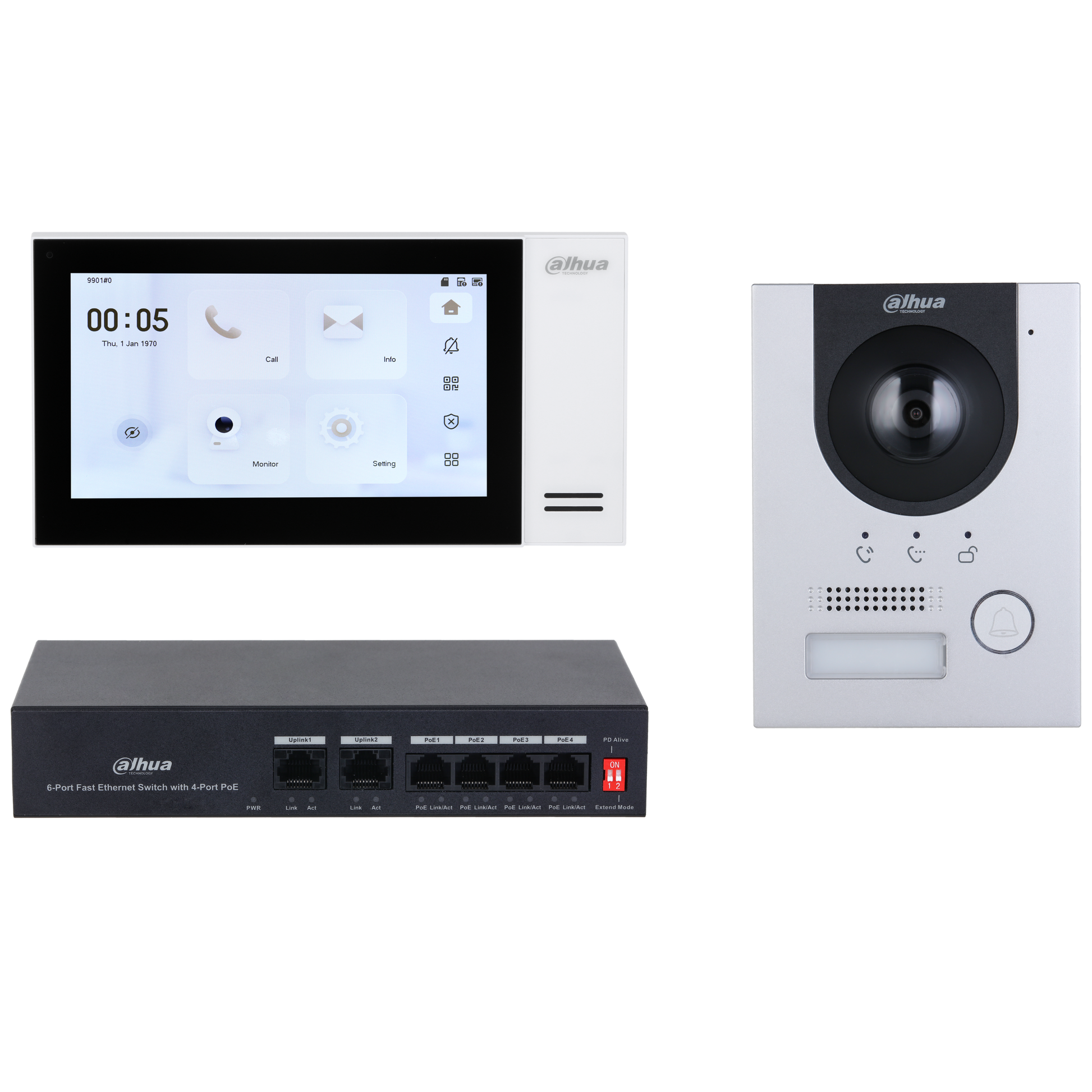

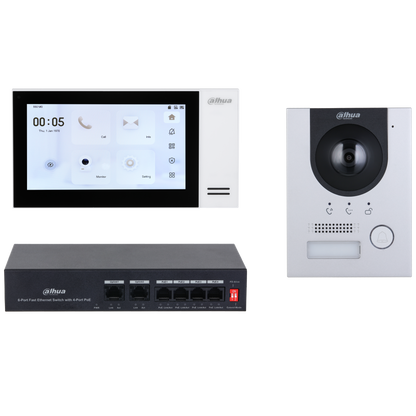

Kit includes:

1 x Dahua DHI-VTO2202F-P 2MP Villa Outdoor Station
1 x Dahua DHI-VTH2621GW-P 7" Touch Screen IP Indoor Monitor
1 x Dahua DH-PFS3005-4ET PoE Switch

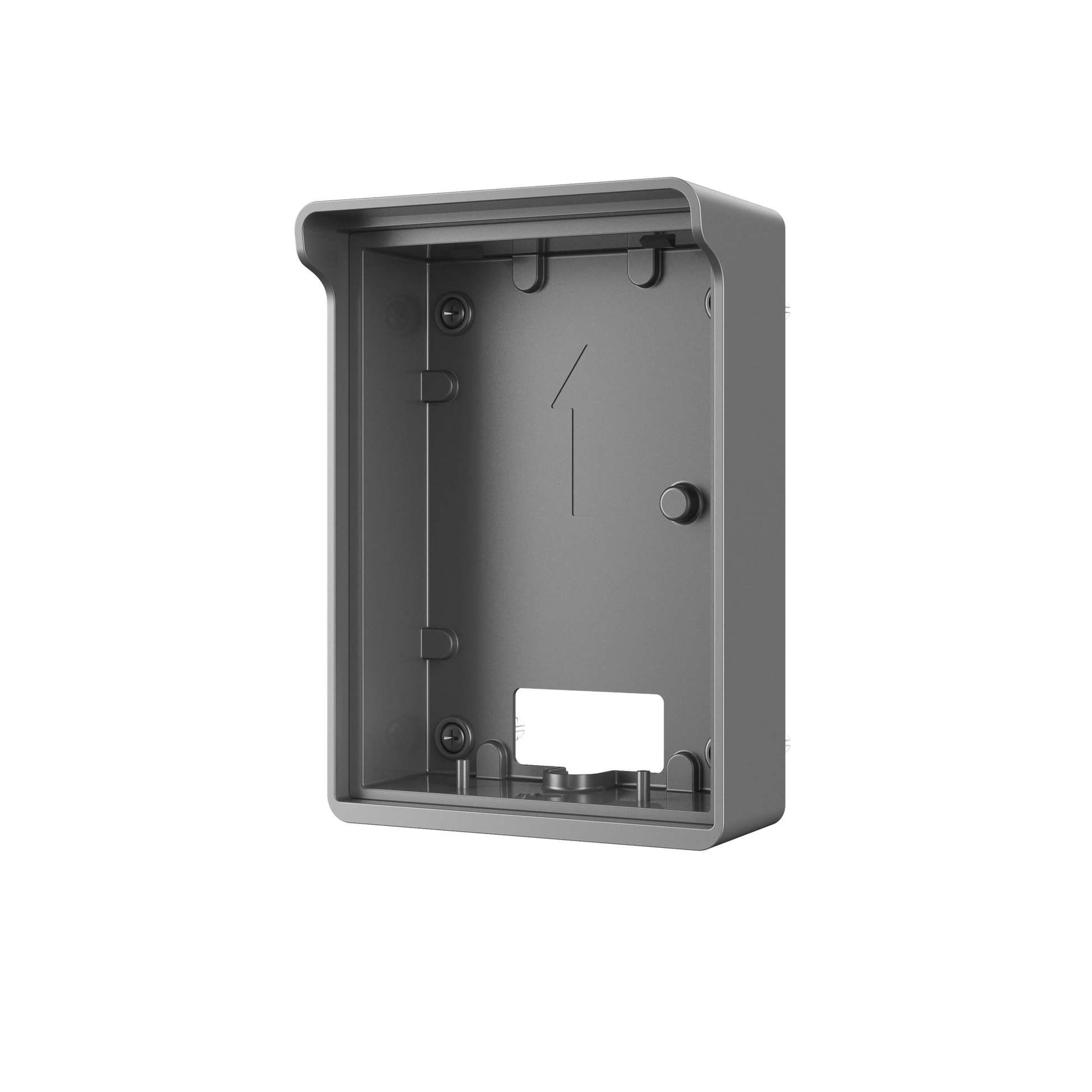

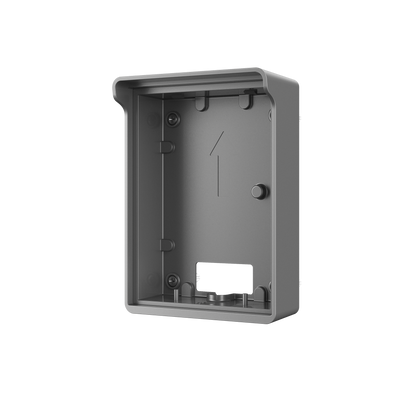

1 x Dahua DH-AC-VTM115 Surface mount bracket

Link to datasheet.
