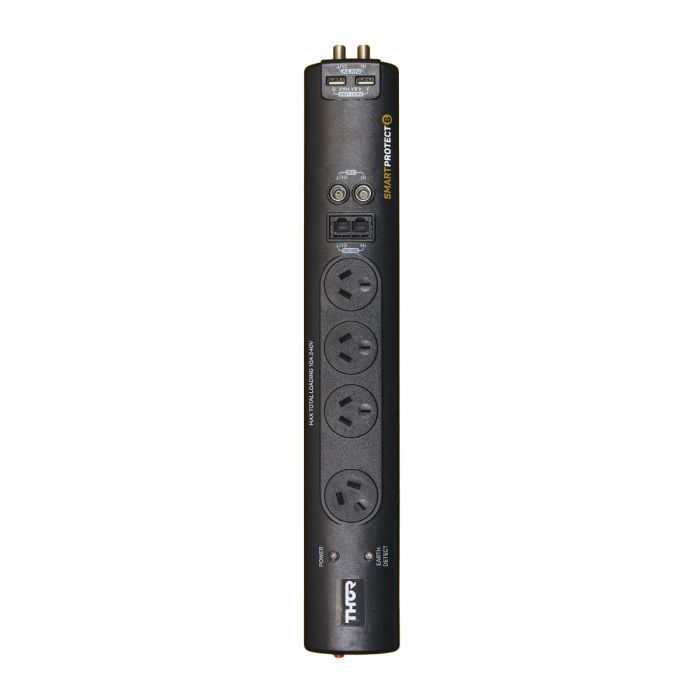

Thor E1/45U Smart Protect 6 Surge Protection Power Board
Thor E1/45U Smart Protect 6 Surge Protection Power Board
Thor SmartProtect 6 power board does more than protect your valuable electronic equipment. The two USB power ports automatically adjust to the voltage of your smart technology to charge your devices quicker. The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.
INSIDE THE THOR SMARTBRAIN
All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. The Thor E1/45U power board has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
TECHNICAL SMARTS
- Thor Surge Protected Power Board
- Product Dimensions: 430mm (L) x 35mm (H) x 75mm (W)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400W(VA)
- Clamping voltage 275V AC
- Reaction time less than 1 nanosecond
- Maximum translent spike impulse current 125,000 amps (equivalent to 31,200 amps using UL 1449 standard)
- Maximum energy dissipation 3670 Joules (equivalent to 1240 Joules using UL1449 standard)
- Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 4
- Total number of protected USB ports: 2
- Pay TV'F' type connection: 1 in and 1 out
- AV/TV antenna coax connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 2 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.2m
- Model No: E1/45U
